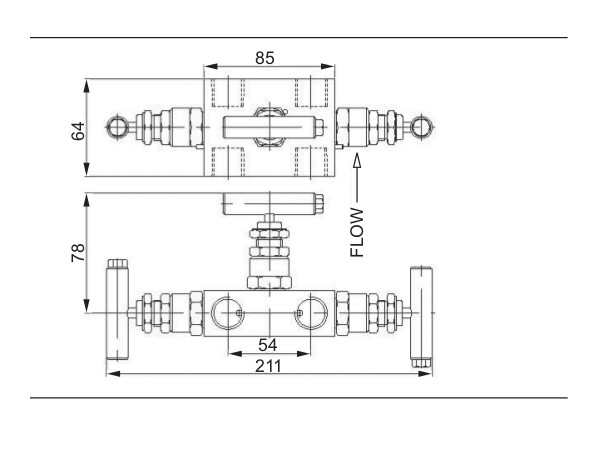

These manifolds are generally used in differential pressure applications with pressure gauges, Pressure switches & pressure transmitters. Two isolation valves & one equalising valve is provided.

The standard connections are 1/2” NPTF.

The drain connection of 1/4” NPT is provided as an option.

The different models are available as mentioned below.

Standard specifications:

• Maximum working pressure : 413 bar/6000 PSI at 100 deg cel.
• MOC in accordance with NACE MR0175 is available on request
• Monel, Inconel, Hastelloy, Duplex steel are also available on request
• Standard process connection : 1/2” NPTF
• Standard instrument connection : 1/2” NPTF
• Weight: 1.50 kg
