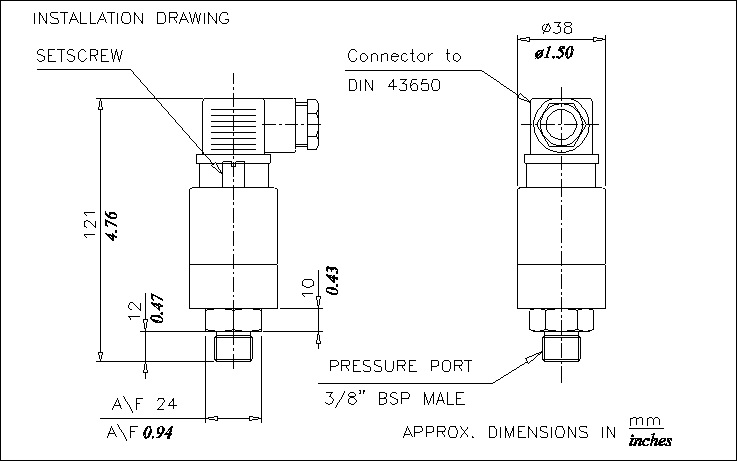

SA OEM hydraulic switches have a die cast aluminium enclosure, intended for inhouse use. These are generally used where size is constraint. The repeat accuracy is better  than ± 2 % of FSR. Process connection : 3 ⁄ 8” BSP(M) standard

Applications

• Burners and Furnaces
• Chemical Industries
• Hydraulic, Steam and GasTurbines
• Boilers & Compressors
• Machine tools
• Railway braking systems
• Water treatment
• Sugar and Paper Mills

Product Specifications

• Storage temperature : Atmospheric temperature
• Operating ambient temperature : - 20 ºC to + 60 ºC
• Media Temp.:- for rubber diaphragms 80 degree C max., higher with metal diaphragms
• Can be offered for higher temperatures with other capsule combinations
• Setpoint repeatability : ± 2 % of FSR
• Enclosure : Die cast aluminium
• Switch output : SPDT,contacts
• Process connection : 3 ⁄ 8 “BSP standard.
