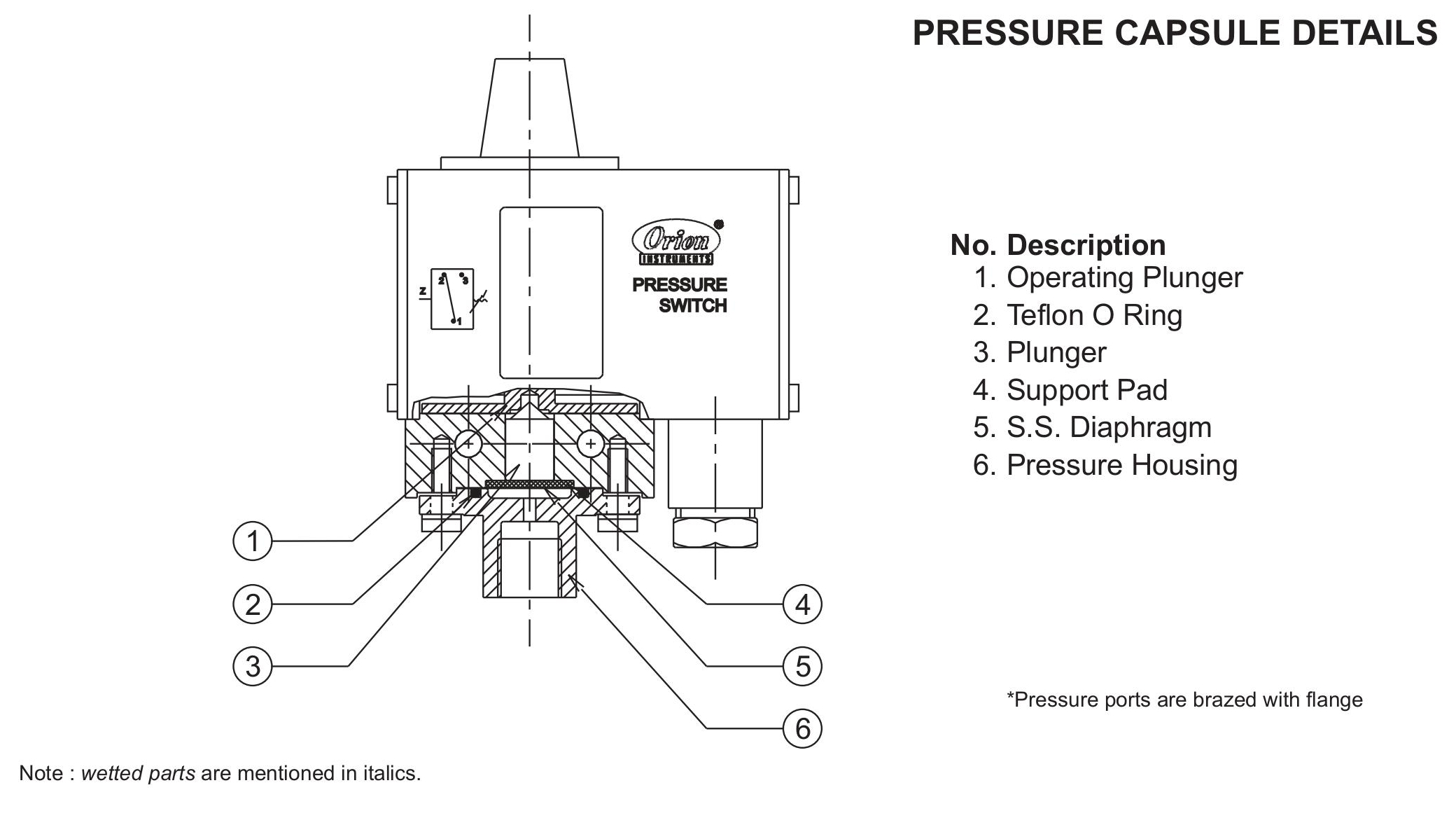

MN Switches are housed in a diecast aluminium enclosure which conforms to IP54 protection factor. Rubber gaskets can be provided optionally to provide an IP65 enclosure. MN Switches will generally have only one SPDT microswitch but switches with two SPDT microswitches can also be provided. The Pressure port is 1/4” BSP female.

Some Applications

• Power generation
• Burners & Furnaces
• Glass & Metal industries
• Chemical Industries
• Steel Industries
• Hydraulic, Steam and Gas turbines
• Boiler and Compressors
• Machine Tools
• Railway Braking Systems
• Water Treatment
• Sugar and paper mills
• Fire Protection
• Surgical gas, breweries, milk industries
• Tyre industries
• Natural gas, LPG storage and transportation.

Product Specifications

• Storage Temp. : Atmospheric temperature
• Operating ambient Temp. : 0ºC to 60ºC
• Media Temp.:- for non-metallic diaphragms 80ºC max.(higher with metal diaphragms)
• Set point repeatability : ± 2% over full range
• Enclosure details : Diecast Aluminium
• Switch output 1 SPDT (2 SPDT on request).
