HM series pressure switches have a machined aluminium powder coated enclosure and are recommended for manifold mounting hydraulic applications. When fitted with different types of chemical seals these can also be used for various processes. The repeat accuracy is better than +/- 1 % FSR. A connector to DIN 43650 is provided for wiring. Three mounting styles are available.


  • High / Low Pressure Alarms in CNC Machines
  • Manifolds /in Stacks

Product Features

  • Compact
  • Lightweight
  • Three mounting styles.
  • low on-off differentials
  • low setpoints with high working pressures
  • Lockable protective cap to avoid tampering(optional)

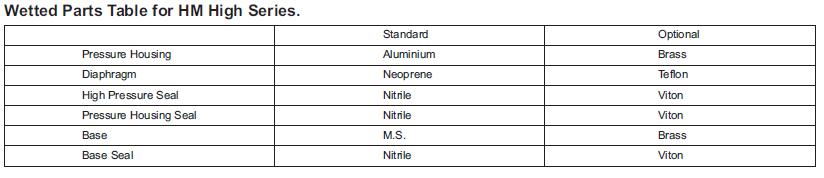

  • Choice of wetted parts to suit working media.
  • Electrical rating:5A,250VAC;0.2A,250VDC(res.)
