Information
SE series subminiature pressure switches are low cost options. They are generally used where size is a constraint. Typical applications are to sense oil pressure in power packs. Can also be used for several automation applications.
Applications
- Burners and Furnaces
- Chemical Industries
- Hydraulic, Steam and GasTurbines
- Boilers & Compressors
- Machine tools
- Railway braking systems
- Water treatment
- Sugar and Paper Mills
Product Specifications
- Storage temperature : Atmospheric temperature
- Media Temp.:- for rubber diaphragms 80 degree C max., higher with metal diaphragms
- Setpoint repeatability : ± 2 % of FSR
- Enclosure : Rolled aluminium
- Switch output : NO, NC SPDT contacts
- Process connection : 1/4" BSP(M), other sizes available
Product Features
- Compact
- Lightweight (Approx. 0.11 Kg.)
- Normally closed (NC) or normally open (NO) or SPDT
- Electrical rating: 5A, 250VAC; 0.2A, 250 VDC (res.)
- Switching point easy to adjust

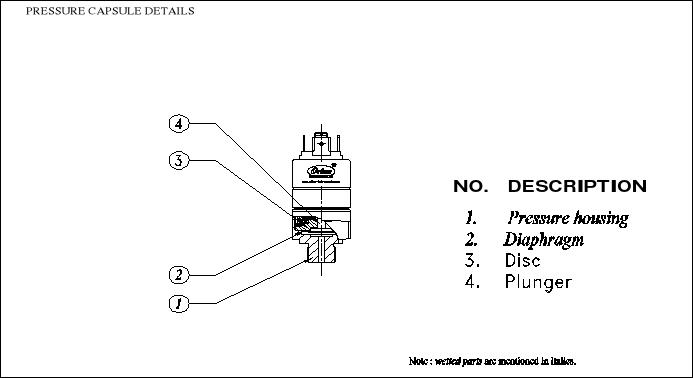

- Material : Body - Aluminium; Pressure housing - Brass/MS/SS
- Wetted parts : MS/Brass/SS316L, Neoprene, Teflon
- Pressure port : 1/4" BSP(M), other sizes available
